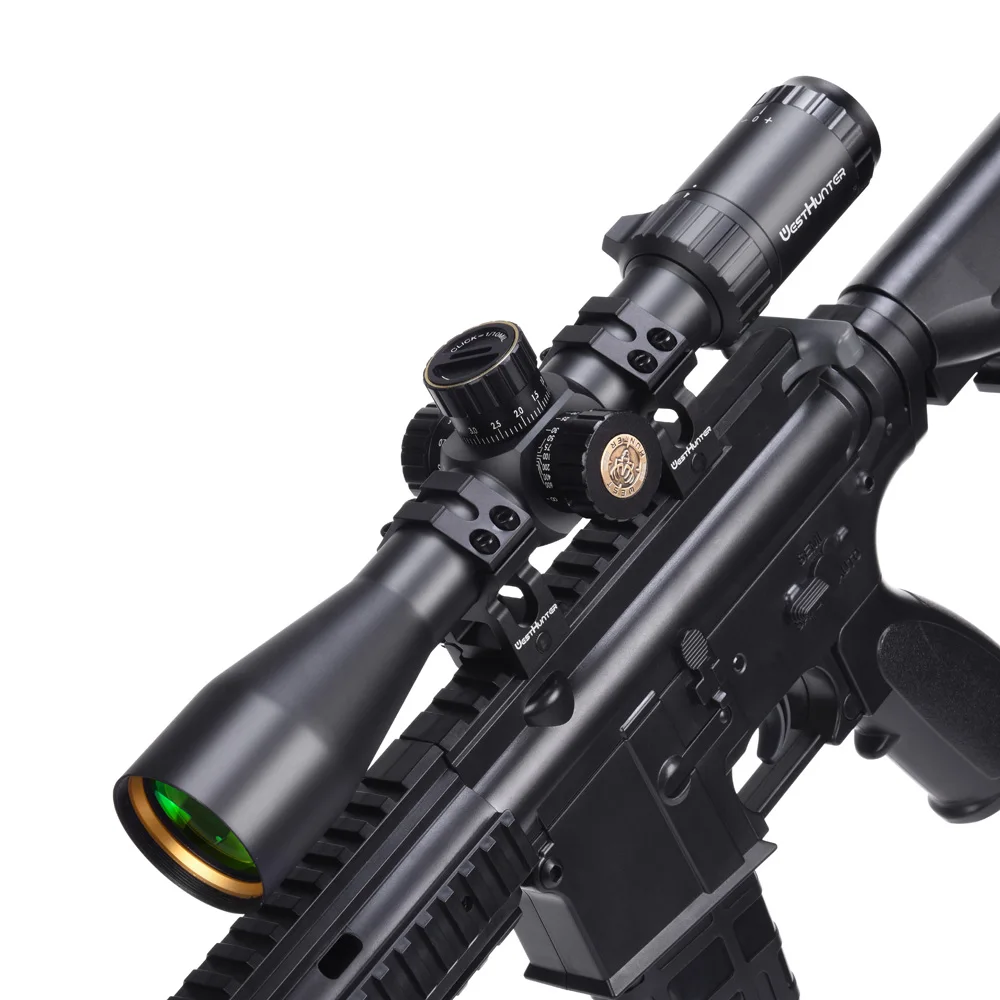

WESTHUNTER HD 4-16X44 FFP Hunting Scope First Focal Plane Tactical Riflescopes

(14 customer reviews)

160,99173,99

Clear
SKU: 10415 Category: Tags: , ,

Description

2

Specifications:
Magnification Low:4
Magnification High:16
Tube Diameter:1.18in / 30mm
Objective diameter:44
Diopter range +/-:2
Exit Pupil Distance (mm):96
Click Value:1/10MIL
Total travel elevation (@ 100 yds):≥ 45MOA
Total travel windage (@ 100 yds):≥ 45MOA
Parallax Compensation:15yds-∞
Fast focus eyepiece:yes
Sealing gas used:Nitrogen
Clear aperture min magnification (mm):44
Clear aperture max magnification (mm):44
Eff. exit pupil diameter @  min. magnification ± 3 % :11.00
Eff. exit pupil diameter @  max. magnification ± 3 %:2.75
Maximum resolution in Arc. Second (min. Magnification):4
Maximum resolution in Arc. Second (max. Magnification):4
Range of Function temperature (Unit can still be operated):-25°C/+55°C
Storage temperature:-40C to +85C
Range of Dioptric compensation +/- dpt:2
Permissible backlash Dioptric Compensation:<0.25dpt
objective field of view @ min magnification (ft @100yds):27.3
objective field of view @ max magnification (ft@100yds):6.8
Change of impact point after change of magnification (MOA):1
Straightening  of the Reticle:± 2 °
Coating:FMC
Optical length at infinity and zero diopter (mm):313
Length:12.52in / 31.8cm
Weight(g):20.46oz / 580g
JYT_7446

JYT_7391JYT_7389JYT_7392JYT_7400

JYT_7405

JYT_7393JYT_7398



Additional information

Weight N/A
Dimensions N/A
Color

High 11MM Mount, High 11MM With Wheel, High 20MM Mount, High 20MM With Wheel, Low 11MM Mount, Low 11MM With Wheel, Low 20MM Mount, Low 20MM With Wheel

Origin

CN(Origin)

Click Value

1/10MIL

Exit Pupil Distance (mm)

96

Shockproof/waterproof/Fogproof

Yes

Fast focus eyepiece

yes

Model Number

HD 4-16X44 FFP

Brand Name

WestHunter

Function

Lens

Type

RIFLE

Diopter range +/-

2

length

12.52in / 31.8cm

Clear aperture min magnification

44mm

Clear aperture max magnification

44mm

Coating

FMC

Magnification

4-16

Parallax Compensation

15yds-Infinity

Net Weight

20.46oz / 580g

Objective Diameter

44MM

Tube Diameter

1.18in / 30mm
